    I have a Loar LH-700 on the way, and if it looks/sounds good then I will be wanting to add a pickguard

    is the Allparts one decent?
    is it the longer variant or the shorter size (20’s era, mounted near the 16th fret)?

    is the Fox-Guitars one head and shoulders better?

    also looking for opinions on tortoise vs black
    - which looks more “period correct” - trying to give the Loar that classy old time look

    any photos would be greatly appreciated

  2.

    The Jazz Guitar Chord Dictionary

  3. #2

    User Info Menu

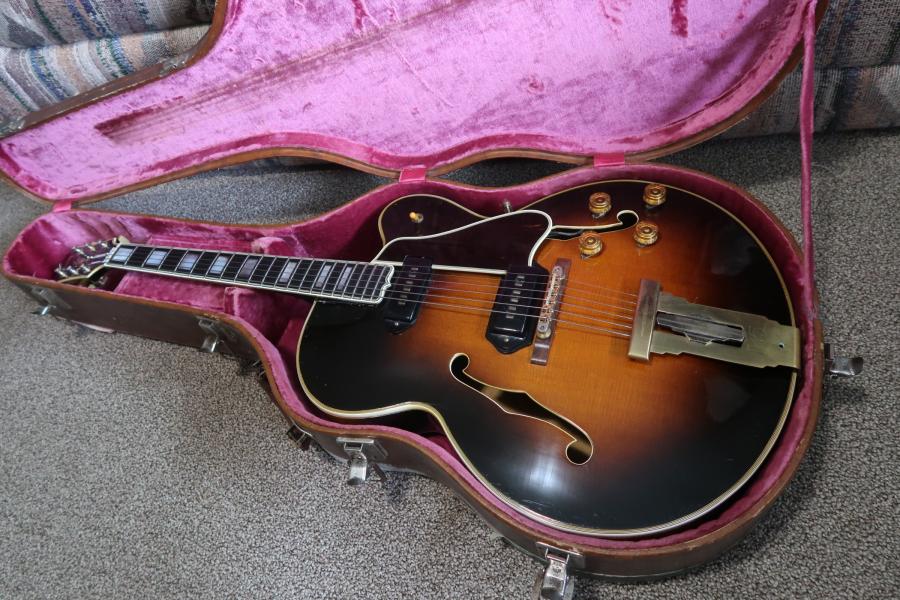

    I have installed the Allparts Tortoise guards on a few L5’s. I like them a lot. The size, shape, color and binding looks correct for an L5. I also like the way the binding is slightly yellowed/aged looking. I attached a couple pictures of ones that I have installed.
    Keith
    Anyone use the Allparts L5 inspired pickguard?-703b586d-963a-442c-8c9c-8b48aebbcff8-jpgAnyone use the Allparts L5 inspired pickguard?-a2725b15-b0ab-4c36-919e-097bcf1c4185-jpgAnyone use the Allparts L5 inspired pickguard?-3e11097f-749e-458d-8a3c-85645ad159f0-jpg

  4. #3
    Those do look good!

    thanks for the quick response

    does the Allparts guard come with the mounting hardware?

  5. #4

    User Info Menu

    Hey Keith,

    What is the length and maximum width of the Allparts L5 guard? I’m wondering whether it would be a good fit for my16” noncut L7.

    Paul

  6. #5

    User Info Menu

    Quote Originally Posted by tfling View Post
    Those do look good!

    thanks for the quick response

    does the Allparts guard come with the mounting hardware?
    No

  7. #6

    User Info Menu

    But you can order the mounting hardware when you order the pickguard. They have it in stock.

  8. #7

    User Info Menu

    Quote Originally Posted by tfling View Post
    Those do look good!

    thanks for the quick response

    does the Allparts guard come with the mounting hardware?
    No, Allparts pickguards don’t come with hardware. In my case, I was replacing old deteriorating pickguards that were on the guitars and just used the existing Gibson hardware. You also have to drill the holes and cut out any openings for pickups, etc.
    Keith

  9. #8

    User Info Menu

    Quote Originally Posted by pcjazz View Post
    Hey Keith,

    What is the length and maximum width of the Allparts L5 guard? I’m wondering whether it would be a good fit for my16” noncut L7.

    Paul
    Hi Paul:
    I don’t have the guitars with me at the moment, so I can’t measure them. I am sure you could get that information if you contact Allparts.
    Keith

  10. #9

    User Info Menu

    Quote Originally Posted by sgosnell View Post
    But you can order the mounting hardware when you order the pickguard. They have it in stock.
    Aftermarket pickguard brackets are not exactly the same as real Gibson ones.
    Keith

  11. #10

    User Info Menu

    Quote Originally Posted by floatingpickup View Post
    Aftermarket pickguard brackets are not exactly the same as real Gibson ones.
    Keith
    A little background on my comment:

    If we are talking about the vintage-style brackets with a threaded rod and nuts, most aftermarket brackets have “acorn” nuts. Gibson uses a flat nut. The thread size is also different. It’s not easy to find an original Gibson bracket though and aftermarket ones will look ok.

    Gibson used a simple bent bracket in the seventies. That one would probably be easier to replicate.

    Keith

  12. #11

    User Info Menu

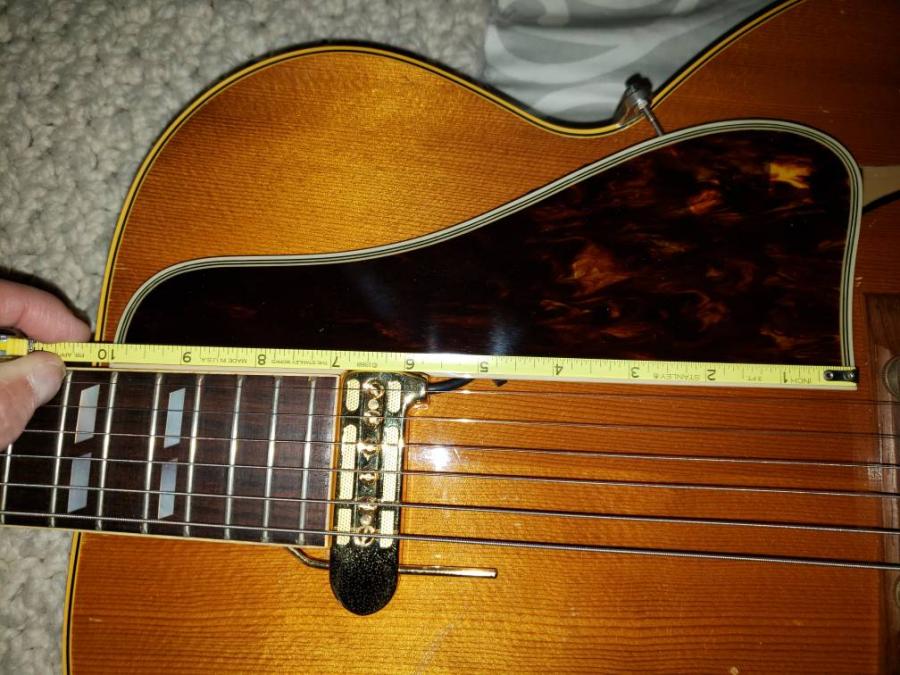

    @pcjazz. Allparts L5 guard I mounted on my '48 L7N.

    Just about 10" long by 3 15/16" at its widest.Anyone use the Allparts L5 inspired pickguard?-20191117_211029-jpgAnyone use the Allparts L5 inspired pickguard?-20191117_211057-jpg

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  13. #12

    User Info Menu

    Quote Originally Posted by floatingpickup View Post
    A little background on my comment:

    If we are talking about the vintage-style brackets with a threaded rod and nuts, most aftermarket brackets have “acorn” nuts. Gibson uses a flat nut. The thread size is also different. It’s not easy to find an original Gibson bracket though and aftermarket ones will look ok.

    Gibson used a simple bent bracket in the seventies. That one would probably be easier to replicate.

    Keith
    I came across a vendor that sells brackets with a flat not acorn nut. Can't recall at the moment, and I ordered it online on my work PC. I can track it down tomorrow. IIRC it was Pickguardian, but not positive.

    If you zoom in on my pics above you can see it. I did use the "shoe" from the original 1948 guard (the rod and nuts had been replaced) with the new bracket rod I bought. The hole on the shoe on the replacement bracket didn't line up with the hole on the rim of the '48, and I wasn't keen on drilling a new hole.

    Edit; if you want a better pic of the bracket/rod/nut, I can take one. I also ordered a spare rod/nut set (they had them available seperately) and can pull that out for a pic as well...

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  14. #13

    User Info Menu

    Quote Originally Posted by Brian B View Post
    I came across a vendor that sells brackets with a flat not acorn nut. Can't recall at the moment, and I ordered it online on my work PC. I can track it down tomorrow. IIRC it was Pickguardian, but not positive.

    If you zoom in on my pics above you can see it. I did use the "shoe" from the original 1948 guard (the rod and nuts had been replaced) with the new bracket rod I bought. The hole on the shoe on the replacement bracket didn't line up with the hole on the rim of the '48, and I wasn't keen on drilling a new hole.

    Edit; if you want a better pic of the bracket/rod/nut, I can take one. I also ordered a spare rod/nut set (they had them available seperately) and can pull that out for a pic as well...

    Sent from my SM-G960U using Tapatalk
    Brian:
    I also found a vendor who had brackets with flat nuts a few years ago. I ordered one for a guitar that I was working on. I recall that, although it looked authentic, it had a different thread size than my original Gibson ones. Fortunately, it came with the little threaded plastic piece that attaches to the underside of the pickguard. If you are using a brand new Allparts pickguard, you can glue the new plastic piece on the bottom and everything will work out fine. As you said, you can even use a Gibson “shoe” with it, because it isn’t threaded. You can’t mix old and new threaded parts though.
    Keith

  15. #14

    User Info Menu

    Quote Originally Posted by floatingpickup View Post
    Brian:
    I also found a vendor who had brackets with flat nuts a few years ago. I ordered one for a guitar that I was working on. I recall that, although it looked authentic, it had a different thread size than my original Gibson ones. Fortunately, it came with the little threaded plastic piece that attaches to the underside of the pickguard. If you are using a brand new Allparts pickguard, you can glue the new plastic piece on the bottom and everything will work out fine. As you said, you can even use a Gibson “shoe” with it, because it isn’t threaded. You can’t mix old and new threaded parts though.
    Keith
    Bingo.

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  16. #15

    User Info Menu

    .......And just for a heads-up, these furniture pads w/ adhesive backing work well for adding support / shimming from underneath the pg...Once you've fitted the pg, these can be attached to the underside of it, and the felt protects the top.....

    https://www.amazon.com/Scotch-Round-...F6KERBHMYVGJSP

    ..and easy to cut and trim and really can't be seen once fitted...........

  17. #16

    User Info Menu

    Quote Originally Posted by Brian B View Post
    I came across a vendor that sells brackets with a flat not acorn nut. Can't recall at the moment, and I ordered it online on my work PC. I can track it down tomorrow. IIRC it was Pickguardian, but not positive..... <snip>

    Sent from my SM-G960U using Tapatalk
    Sometimes I should trust my instincts....lol

    Brackets | Pickguardian
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  18. #17

    User Info Menu

    Quote Originally Posted by Brian B View Post
    Sometimes I should trust my instincts....lol

    Brackets | Pickguardian
    Wow! Those look great. And it says “standard Gibson thread”. This is great news. I was never able to find an aftermarket one like this. Thanks for sharing.
    Keith

  19. #18
    Just curious - how is the front of this pickguard supported/held down ?

    all of the archtops I have had before have had a screw that went through the top of the guitar to anchor the front of the guard (which I am not a huge fan of drilling into the top)

    am i I missing something about the installation of this?

  20. #19

    User Info Menu

    You can add a block in that area and screw it into the side of the fingerboard extension.

  21. #20

    User Info Menu

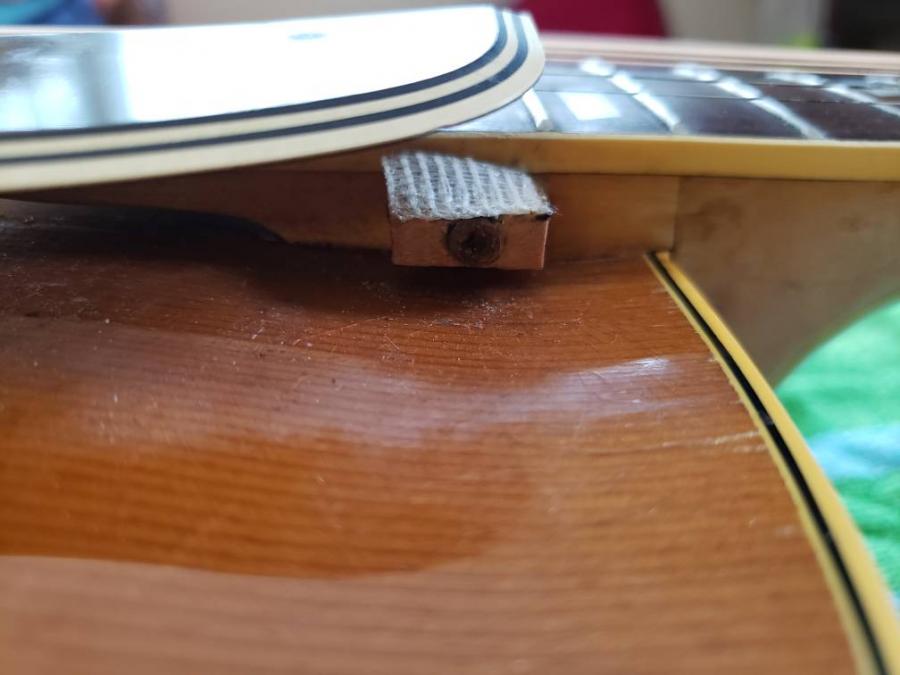

    Here's the original block on my '48. Originally glued, it came loose prior to me getting it and was secured using double sided tape. Here you can see how much my original guard was cupping/warped.

    Which is why I got the Allparts guard.Anyone use the Allparts L5 inspired pickguard?-20190505_114524-jpg

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  22. #21

    User Info Menu

    Quote Originally Posted by Brian B View Post
    Here's the original block on my '48. Originally glued, it came loose prior to me getting it and was secured using double sided tape. Here you can see how much my original guard was cupping/warped.

    Which is why I got the Allparts guard.Anyone use the Allparts L5 inspired pickguard?-20190505_114524-jpg

    Sent from my SM-G960U using Tapatalk
    Brian, The original guard and block would have been tortoiseshell plastic, the one you replaced is a replacement as well.

  23. #22

    User Info Menu

    Quote Originally Posted by wintermoon View Post
    Brian, The original guard and block would have been tortoiseshell plastic, the one you replaced is a replacement as well.
    On an L7?

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  24. #23

    User Info Menu

    Yes

  25. #24

    User Info Menu

    Quote Originally Posted by wintermoon View Post
    Yes
    Huh. Did not expect that. I didn't think the L7 got tort guards...thought the 5 ply BWBWB plastic was original.

    Wonder how long ago it lost it's original then...there's no trace of damage typical of one gassing off on the finish.

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  26. #25

    User Info Menu

    Quote Originally Posted by Brian B View Post
    Huh. Did not expect that. I didn't think the L7 got tort guards...thought the 5 ply BWBWB plastic was original.

    Wonder how long ago it lost it's original then...there's no trace of damage typical of one gassing off on the finish.

    Sent from my SM-G960U using Tapatalk
    It could have been removed before it gassed too much. Some folks don't even like guards and take them off. The only difference between an L5 guard and an L7 is the amount of binding layers

  27. #26

    User Info Menu

    Black guards w the beveled edge came on ES175s and others.

  28. #27

    User Info Menu

    Quote Originally Posted by wintermoon View Post
    Black guards w the beveled edge came on ES175s and others.
    Good to know, and unexpected. Now I don't have to feel so cheezy about putting a tort guard on it...akin to putting Z28 badges on a base Camaro coupe...lol

    Sent from my SM-G960U using Tapatalk
    1948 Gibson L-7N
    1981 Epi Emperor T (MIJ Matsumoku)
    1998 Epi Zephyr Regent (Peerless)
    1992 Gibson Les Paul Studio
    2004 Gibson SG Special Faded
    2006 Epi G-1275 (MIK, Unsung)
    2013 Squier Affinity Telecaster, BSB
    (among others)

  29. #28

    User Info Menu

    Looks nice on your guitar, I had a nice blonde '48 as well, the guard was just starting to go when I sold it. One of the better L7's I've heard, but then early post war acoustic Gibsons are generally punchy and full sounding for some reason.

  30. #29

    User Info Menu

    Quote Originally Posted by tfling View Post
    I have a Loar LH-700 on the way, and if it looks/sounds good then I will be wanting to add a pickguard

    is the Allparts one decent?
    is it the longer variant or the shorter size (20’s era, mounted near the 16th fret)?

    is the Fox-Guitars one head and shoulders better?

    also looking for opinions on tortoise vs black
    - which looks more “period correct” - trying to give the Loar that classy old time look

    any photos would be greatly appreciated
    Here's a pic of my 1970 L5 with one of the allparts pickguards . It looks good, altough i would prefer the semitransparency of the original. No way for me to use a black PG for an L5 and i think the Loar also would look nicer with tortoise.

    Anyone use the Allparts L5 inspired pickguard?-1970_l5ces-jpg
    Last edited by JazzNote; 11-19-2019 at 06:06 PM.
    _________
    JazzNote

  31. #30

    User Info Menu

    JazzNote, that is a REALLY beautiful guitar.
    You keep your stuff nice. I love it.
    Joe D

  32. #31

    User Info Menu

    Just wanted to point out that the binding on the AllParts pg isn’t quite right. On most Gibson L5 pick guards, the first layer of black (from the outside going in) is thicker than the rest of the black layers. On the AllParts version, all the black layers are the same. They’re great guards, and I have one on my 55 L5CESN, but thought it might matter to some.

  33. #32

    User Info Menu

    Quote Originally Posted by Max405 View Post
    JazzNote, that is a REALLY beautiful guitar.
    You keep your stuff nice. I love it.
    Joe D
    Joe, thanks for the praise :-), i love my guitars, love to play them and try to keep them in good shape.
    _________
    JazzNote

  34. #33

    User Info Menu

    The price of these has got to point I cannot make them and earn a profit. I see some with 5 layers of binding for less than $60 and whatever they are doing is sure efficient because it still takes time and material. I have to get $80 or it is not worth the effort. The good thing is that some pickguards have to be fashioned indvidually for the guitar. The stuff I have been using is also twice a thick and works fine most of the time. In the end though just running a price check on ebay for L5 pickguards there are lots of good options that are not expensive. The price has definitely come down on them. It does not have be be exact just pretty close.
    specializing in repair and setup, does your guitar play like it should?

  35. #34

    User Info Menu

    Another vote for the Allparts guard. I’ve used 3 of them with great results each time.

  36. #35

    User Info Menu

    Quote Originally Posted by Brian B View Post
    Huh. Did not expect that. I didn't think the L7 got tort guards...thought the 5 ply BWBWB plastic was original.

    Wonder how long ago it lost it's original then...there's no trace of damage typical of one gassing off on the finish.

    Sent from my SM-G960U using Tapatalk
    My 1947 L7 had the original guard on it when I got it. It was tortoise with a single ply of binding. Unfortunately, it was beginning to deteriorate, so I had a perfect replica built for it by Leroy Aiello (I didn’t want to use an Allparts guard because they don’t make one like this). I attached a picture of the replica, which looks identical to the original.
    Keith
