Acoustic Image Clarus 2R Series II - which fuse?

[jackm]

Hi guys, I’m after a bit of help.

I recently purchased an Acoustic Image Clarus 2R Series II. It’s in very good condition but missing the fuse from the back, so obviously not working. I’m hoping once I replace this we’ll be in action, although maybe the previous owner took it out for a reason, who knows!

Would anyone happen to have a picture of the fuse so I can order a replacement? I know it’s a 3A slo-blo fuse but unsure what size, etc. If anyone with one of these amps could take a picture and upload it, that would be much appreciated.

It’s the fuse on the back of the amp, not the internal ones.

Thanks for your help.

Jack

[Freddels]

FormSwift: PDF Editor

Here is the owner's manual.

[Freddels]

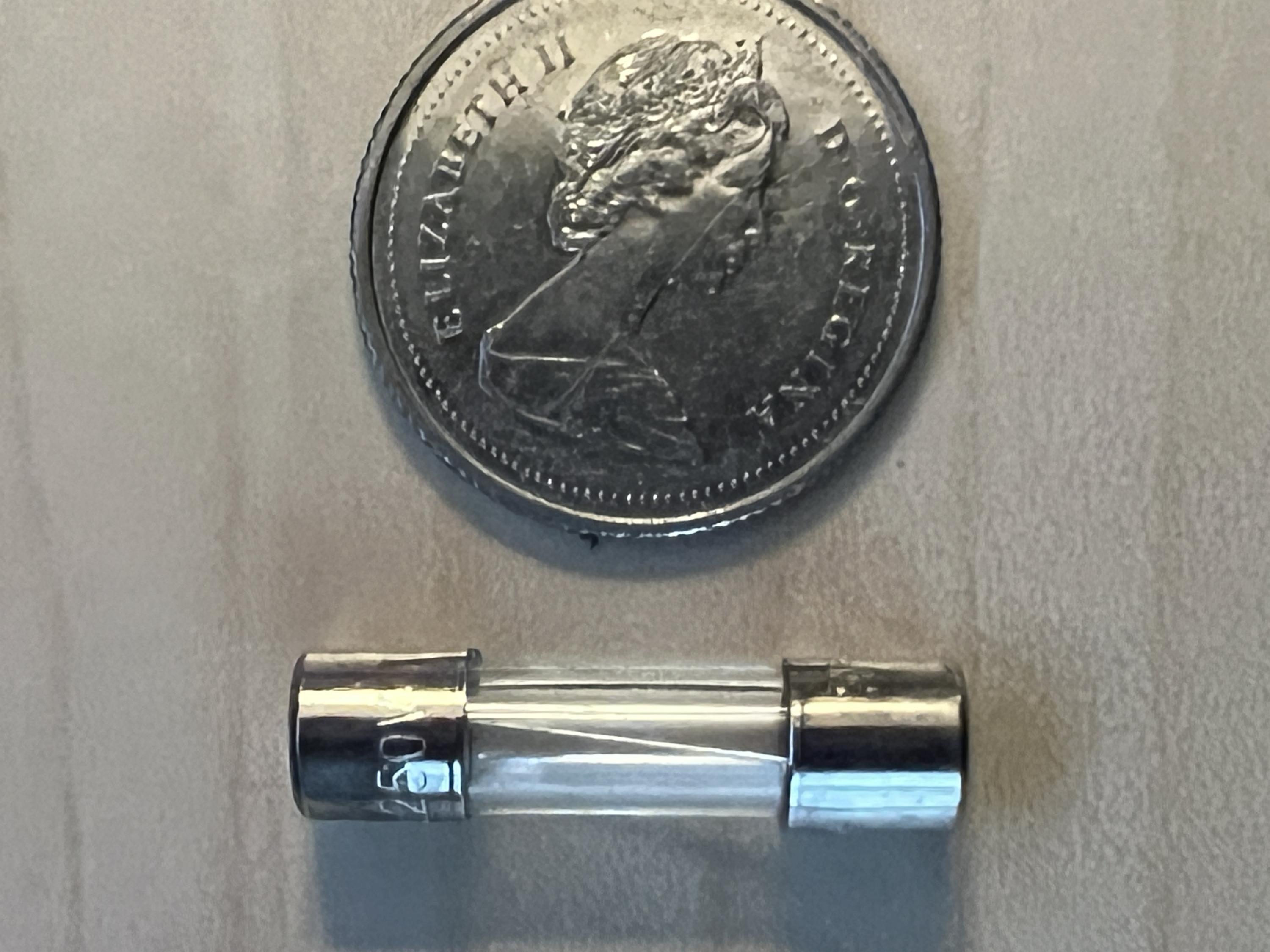

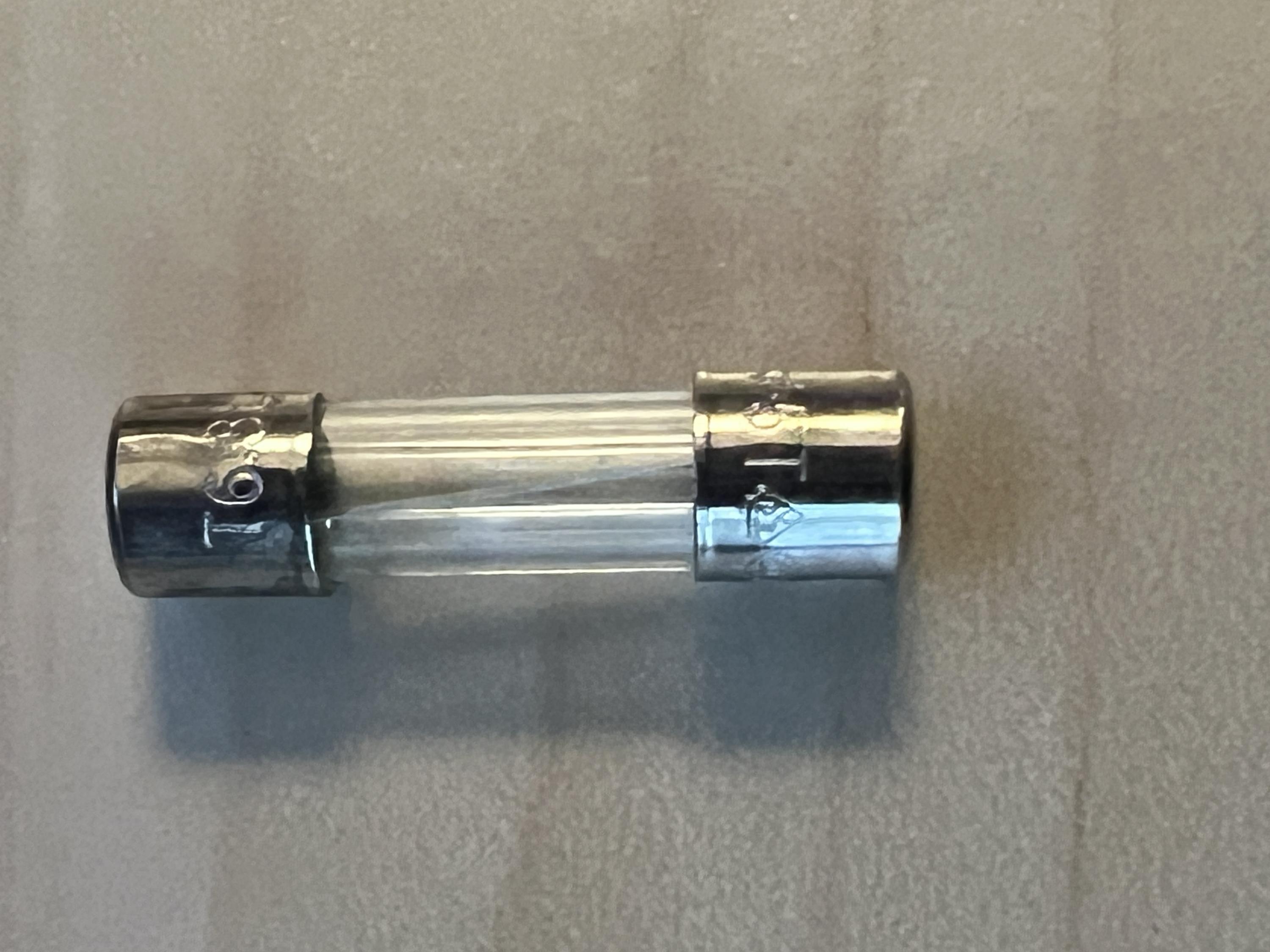

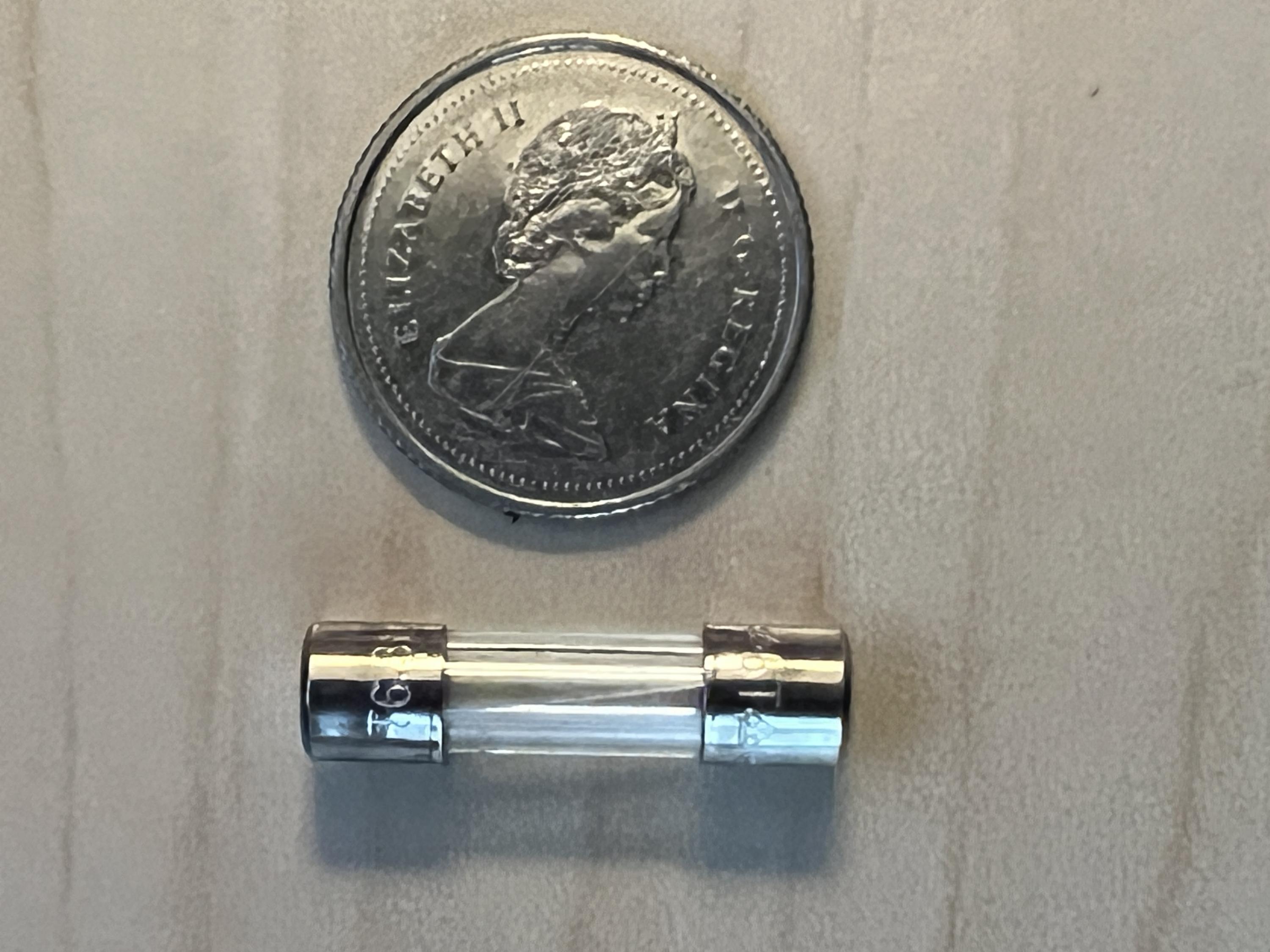

Here are some pics of the fuse from my Series 4. It should be the same fuse according to the manual.

The dime is for size reference.

[MarkL]

Even though the company is no longer active, you could check its website (acousticimg.com), which has manuals and other resources. If that doesn't provide an answer for your model, people associated with AI might still respond to emails at [email protected]. I found them very helpful with an issue that came up about a year ago on my 2R Series III.

[wintermoon]

Here are some pics of the fuse from my Series 4. It should be the same fuse according to the manual.

The dime is for size reference.

I can't see the value but that looks like a mini fast blow, is it original to the amp?

[Freddels]

Yes, the fuse is original to the Series 4.

I can try to get a better picture of the values later on today.

[pcjazz]

3A-250V Slo Blo
